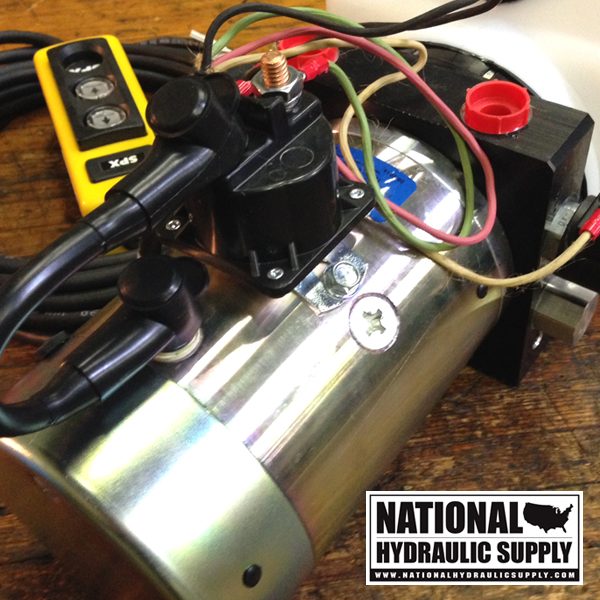

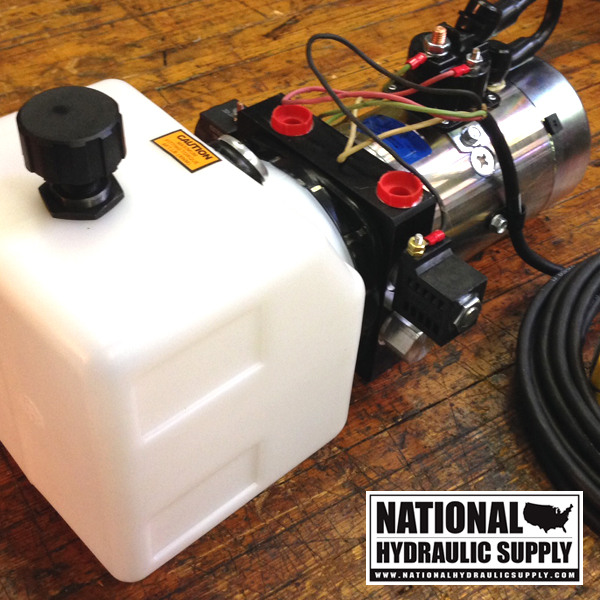

SPX Stone/Fenner Double-Acting Hydraulic Power Unit w/ 1-Gal. Plastic Reservoir

$ 749.99

Individually assembled by hand in Nashville, TN USA.

This compact SPX Stone/Fenner Double-Acting Hydraulic Power Unit comes with a 1-Gal. plastic reservoir. These are reliable and durable DC units for use with dump trailers, snow plows, RV’s, boat lifts, lift gates, presses, and a variety of other applications. Power up and power down. The unit is ready to go, right out-of-the-box.

– 12VDC Electric Motor (Standard Duty)
– Power Up / Power Down
– 1 Gallon Plastic Reservoir
– Gear Pump
– 12V Solenoid Start Switch (Prestolite)
– Pendant Controller

The unit is shipped with a high pressure adjustable relief valve which is set at roughly 2500 PSI (higher or lower relief pressures are available). The low pressure side is also adjustable up to 500 PSI. This unit generates roughly 1.55 GPM at its current settings. Higher range springs are available for the low pressure relief and are recommended for boat lift applications.

Every hydraulic unit that we sell is assembled by hand in our shop. We take great pride in our workmanship, and place a high value on our ability to customize any unit to our customers specifications. This is our standard unit, but it can be modified with steel or plastic reservoirs up to 4 gallons, as well as other modifications. Contact us for details.

Description

Individually assembled by hand in Nashville, TN USA.

This compact SPX Stone/Fenner Double-Acting Hydraulic Power Unit comes with a 1-Gal. plastic reservoir. These are reliable and durable DC units for use with dump trailers, snow plows, RV’s, boat lifts, lift gates, presses, and a variety of other applications. Power up and power down. The unit is ready to go, right out-of-the-box.

– 12VDC Electric Motor (Standard Duty)
– Power Up / Power Down
– 1 Gallon Plastic Reservoir
– Gear Pump
– 12V Solenoid Start Switch (Prestolite)
– Pendant Controller

The unit is shipped with a high pressure adjustable relief valve which is set at roughly 2500 PSI (higher or lower relief pressures are available). The low pressure side is also adjustable up to 500 PSI. This unit generates roughly 1.55 GPM at its current settings. Higher range springs are available for the low pressure relief and are recommended for boat lift applications.

Every hydraulic unit that we sell is assembled by hand in our shop. We take great pride in our workmanship, and place a high value on our ability to customize any unit to our customers specifications. This is our standard unit, but it can be modified with steel or plastic reservoirs up to 4 gallons, as well as other modifications. Contact us for details.
