Power Team C106C, Single-Acting, Spring Return, Hydraulic Cylinder, Ram, 10,000 PSI, SPX

$ 399.99

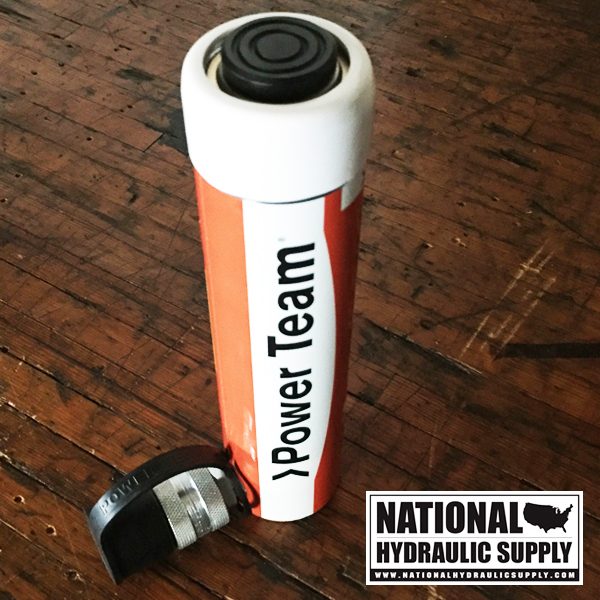

Power Team C106C

Single-Acting 10 Ton Hydraulic Cylinder

RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING

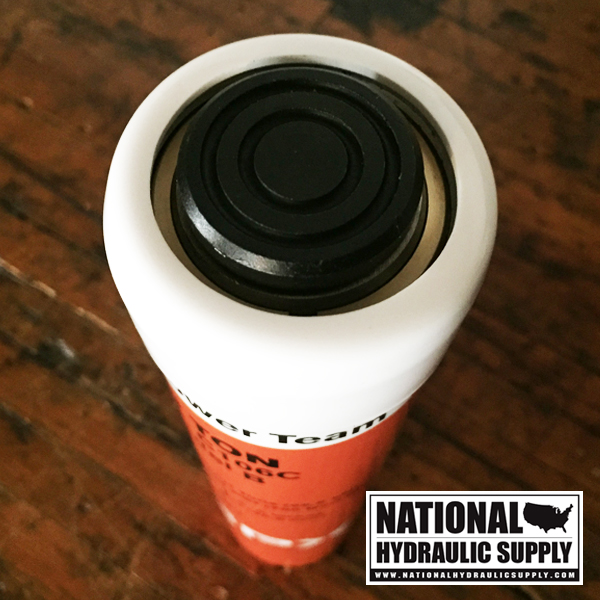

  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Maximum sized springs speed piston return and increase spring life.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
  • Base mounting holes standard.

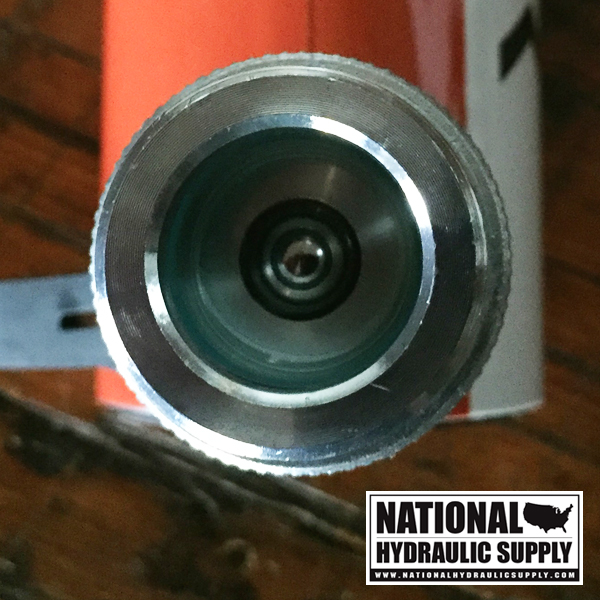

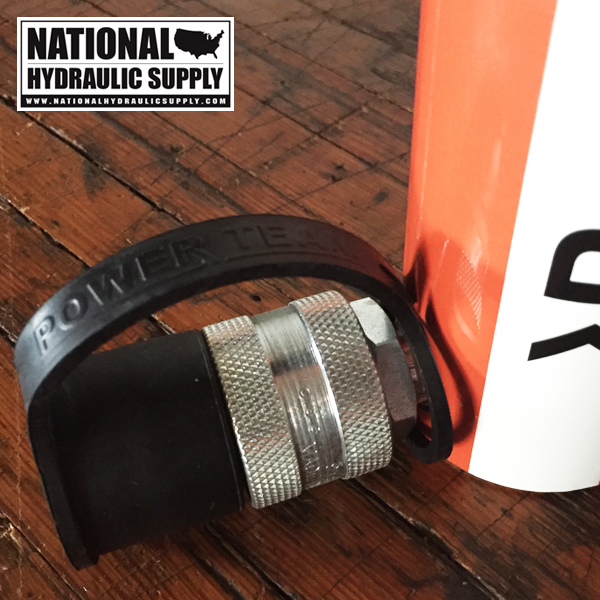

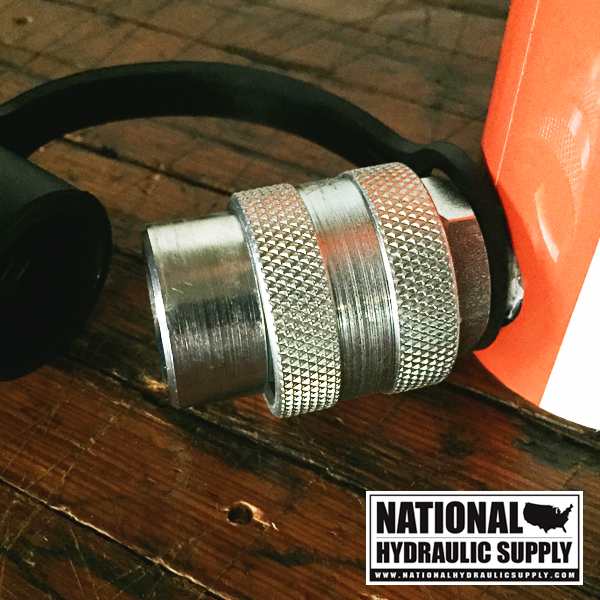

  • A 3/8″ NPTF female half coupler is standard.
  • Crosses over from Enerpac RC106 and Simplex 13180

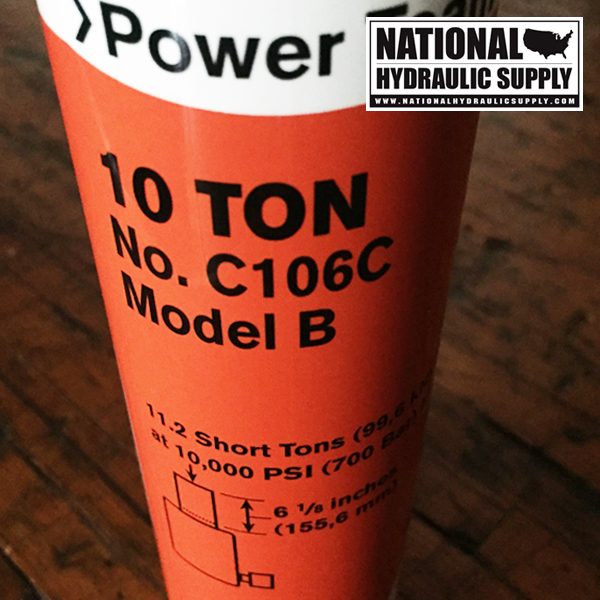

  • 10 Ton
  • Stroke (in.) – 6 1/8″
  • Oil Capacity (cu. in.) – 13.7
  • Bore Diameter (in.) – 1 11/16″
  • Cylinder Effective Area (sq. in) – 2.236
  • Internal Pressure at Capacity (psi) – 8,948

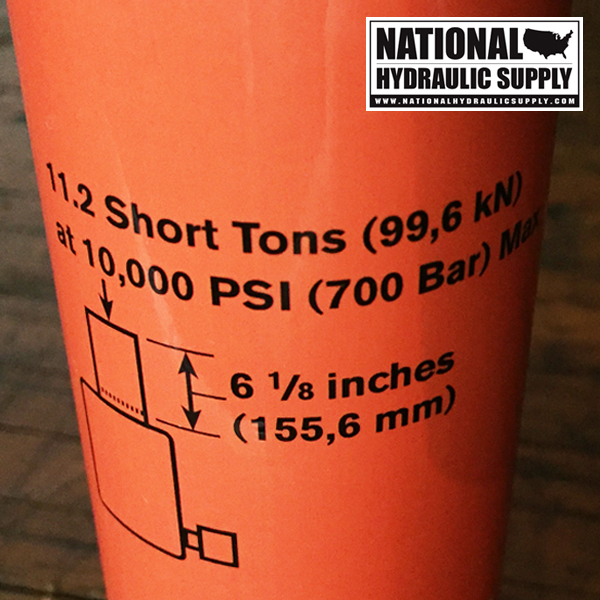

  • Tons at 10,000 (psi) – 11.2
  • Weight (lbs.) – 9.4
  • Retracted Height (in.) – 9 3/4″
  • Extended Height (in.) – 15 7/8″
  • Outside Diameter (in.) – 2 1/4″
  • Collar Thread (in.) – 2 1/4-14
  • Piston Collar Thread Length (in.) – 1 1/8″
  • Base to Port (in.) – 3/4″
  • Piston Rod Diameter (in.) – 1 1/2″
  • Piston Rod Internal Thread and Depth (in.) – 1-8 x 3/4
  • Rod Protrusion (in.) – 1/4″

Orders will be fulfilled quickly via drop ship directly from the factory. Drop shipments are generally dispatched within 1-2 days from the date of purchase. Large quantity and OEM orders are welcome. Please feel free to contact us for availability.

National Hydraulic Supply is a full line supplier and stocking distributor for SPX Stone/Fenner and Power Team. Contact us with with any questions.

SKU: C106C Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Power Team C106C

Single-Acting 10 Ton Hydraulic Cylinder

RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING

  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Maximum sized springs speed piston return and increase spring life.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available to thread onto piston rod, collar, or onto cylinder base.
  • Base mounting holes standard.
  • A 3/8″ NPTF female half coupler is standard.
  • Crosses over from Enerpac RC106 and Simplex 13180
  • 10 Ton
  • Stroke (in.) – 6 1/8″
  • Oil Capacity (cu. in.) – 13.7
  • Bore Diameter (in.) – 1 11/16″
  • Cylinder Effective Area (sq. in) – 2.236
  • Internal Pressure at Capacity (psi) – 8,948
  • Tons at 10,000 (psi) – 11.2
  • Weight (lbs.) – 9.4
  • Retracted Height (in.) – 9 3/4″
  • Extended Height (in.) – 15 7/8″
  • Outside Diameter (in.) – 2 1/4″
  • Collar Thread (in.) – 2 1/4-14
  • Piston Collar Thread Length (in.) – 1 1/8″
  • Base to Port (in.) – 3/4″
  • Piston Rod Diameter (in.) – 1 1/2″
  • Piston Rod Internal Thread and Depth (in.) – 1-8 x 3/4
  • Rod Protrusion (in.) – 1/4″

Orders will be fulfilled quickly via drop ship directly from the factory. Drop shipments are generally dispatched within 1-2 days from the date of purchase. Large quantity and OEM orders are welcome. Please feel free to contact us for availability.

National Hydraulic Supply is a full line supplier and stocking distributor for SPX Stone/Fenner and Power Team. Contact us with with any questions.
