Description

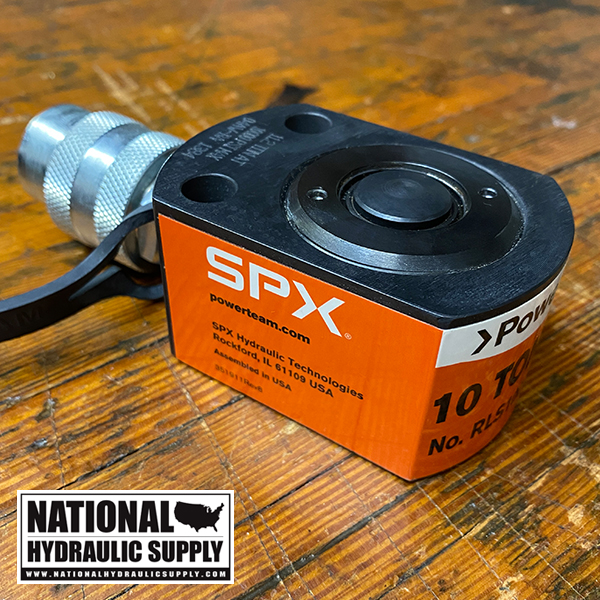

Power Team RLS100
Single-Acting 10 Ton Low Profile Hydraulic Cylinder
RUGGED, HIGH QUALITY CYLINDER IDEAL FOR CONFINED AREAS
- Cylinder body, piston, and gland nut “Power Tech” treated for corrosion and abrasion resistance.
- Standard domed piston rod to minimize effects of off-center loading.
- Unique heavy duty spring provides fast piston return.
- A 9796 3/8″ NPTF female half coupler is standard. Oil ports are 3/8″ NPTF.
- Coupler is angled upward for extra clearance.
- Crosses over from Enerpac RSM100 and Simplex RF10
- 10 Ton
- Stroke (in.) – 7/16″
- Oil Capacity (cu. in.) – 1.0
- Bore Diameter (in.) – 1 11/16″
- Cylinder Effective Area (sq. in) – 2.236
- Internal Pressure at Capacity (psi) – 8,943
- Tons at 10,000 (psi) – 11.18
- Weight (lbs.) – 3.3
- Retracted Height (in.) – 1 3/4″
- Extended Height (in.) – 2 3/16″
- Outside Diameter (in.) – 2 3/16″ x 3 1/4″
- Base to Port (in.) – 5/8″
- Piston Rod Diameter (in.) – 3/4″
Orders will be fulfilled quickly via drop ship directly from the factory. Drop shipments are generally dispatched within 1-2 days from the date of purchase. Large quantity and OEM orders are welcome. Please feel free to contact us for availability.
National Hydraulic Supply is a full line supplier and stocking distributor for SPX Stone/Fenner and Power Team. Contact us with with any questions.
