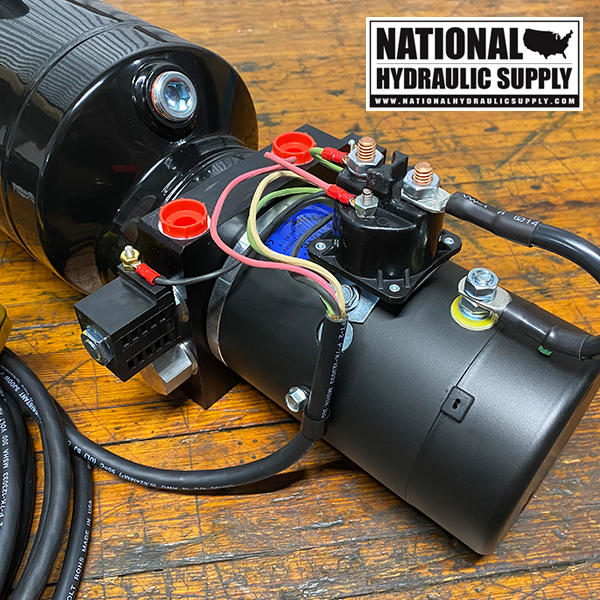

SPX Stone/Fenner Double-Acting Hydraulic Power Unit w/ 1.5-Gal. Steel Reservoir

$ 749.99

Individually assembled by hand in Nashville, TN USA.

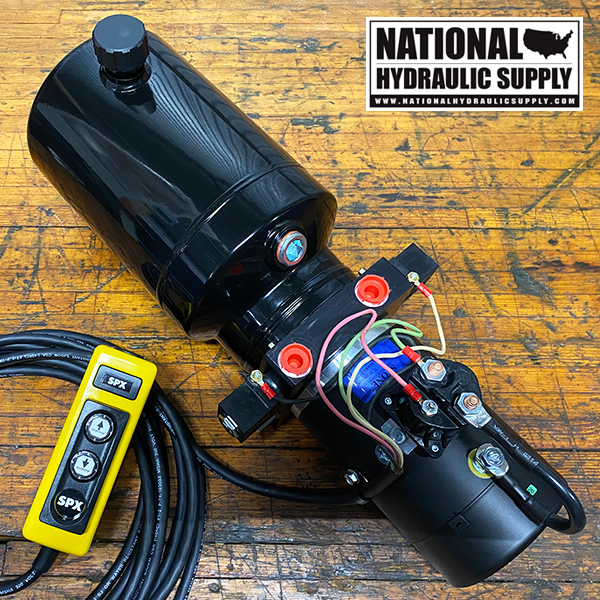

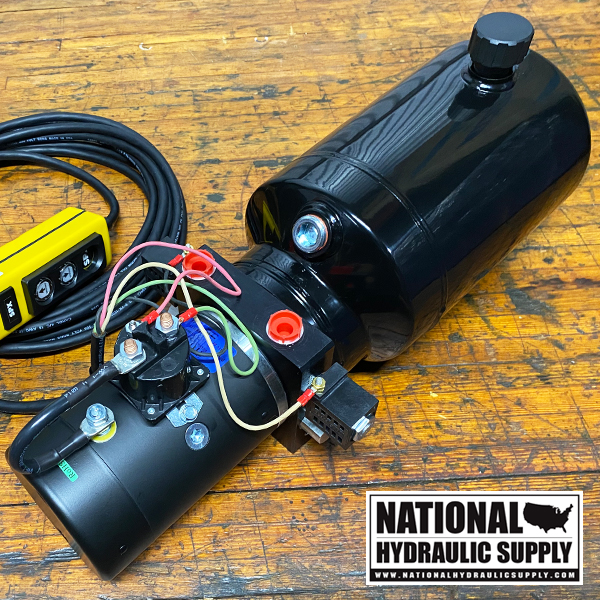

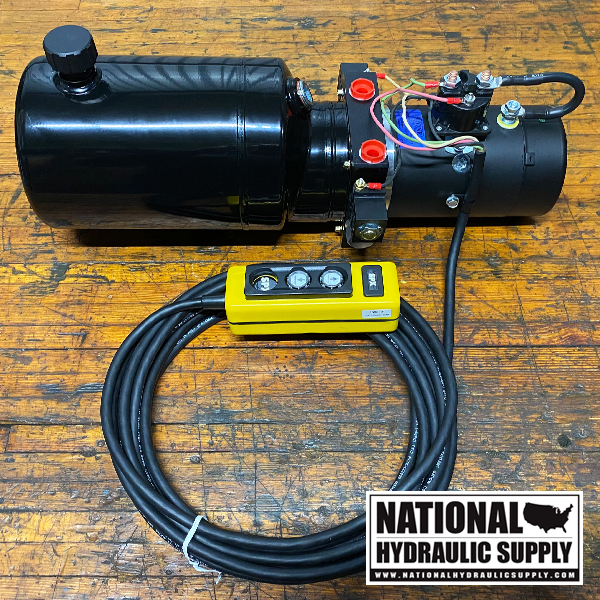

This SPX Stone/Fenner Double-Acting Hydraulic Power Unit is a reliable and durable DC unit for use with dump trailers, dump trucks, cranes, tow trucks, mobile presses, lifts and a variety of other applications. Power up and power down. The unit is ready to go, right out-of-the-box. NHS-1625.

– 12VDC Electric Motor (Standard Duty)
– Power Up / Power Down

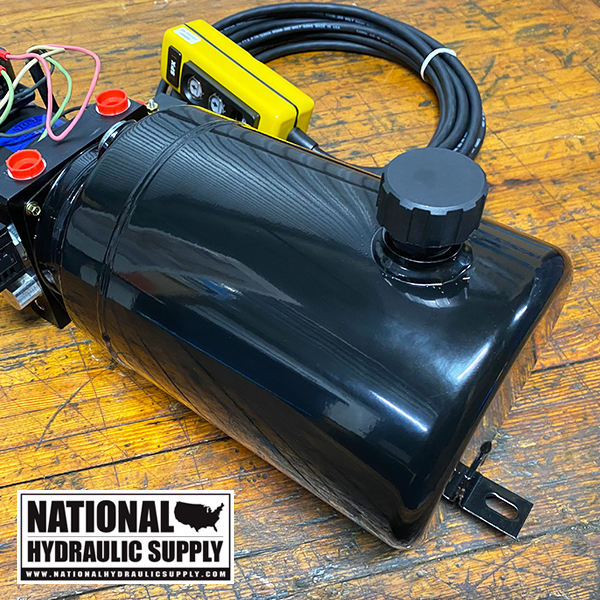

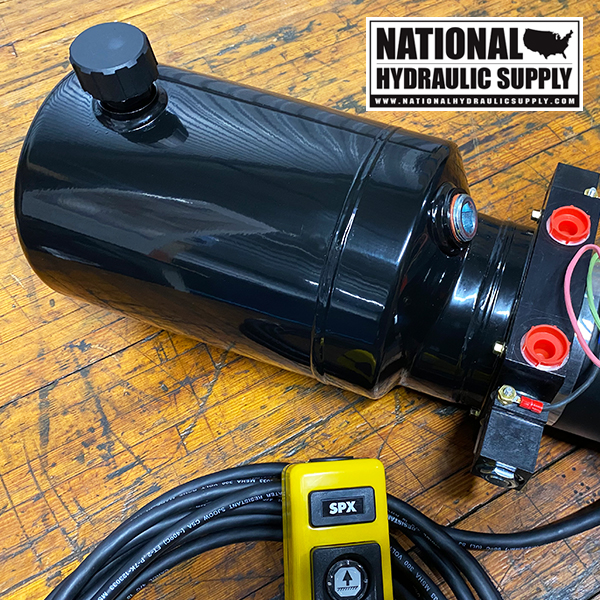

– 1.5 Gallon Steel Reservoir
– AFC Series Gear Pump
– Internal Pressure Compensated Flow Control (2.5 GPM)

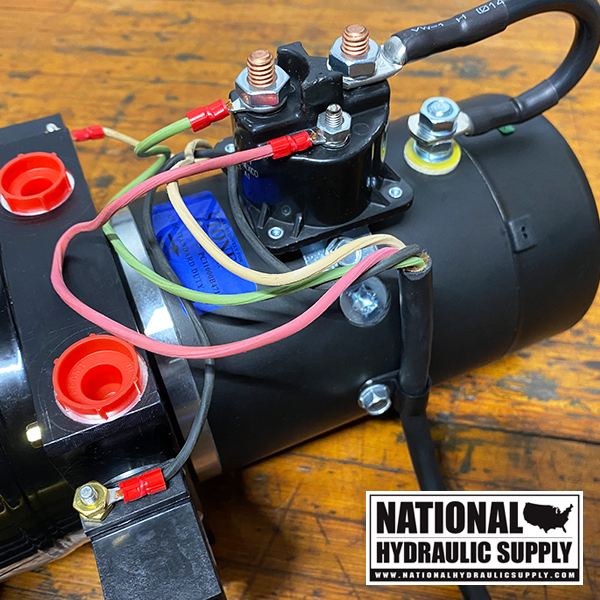

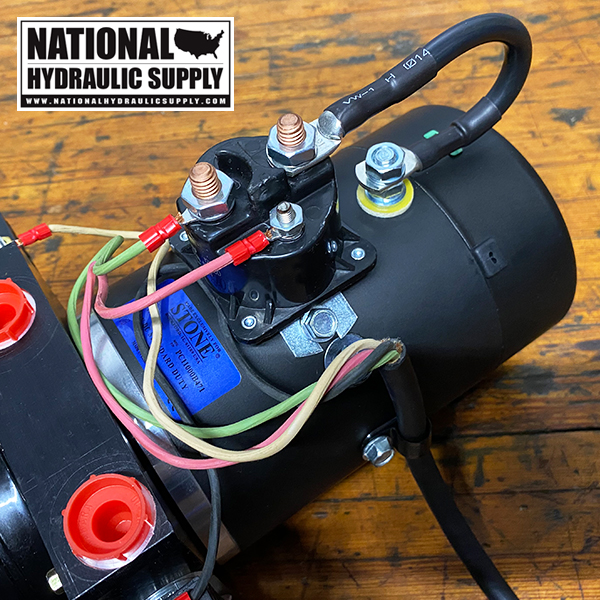

– 12V Solenoid Start Switch (Prestolite)

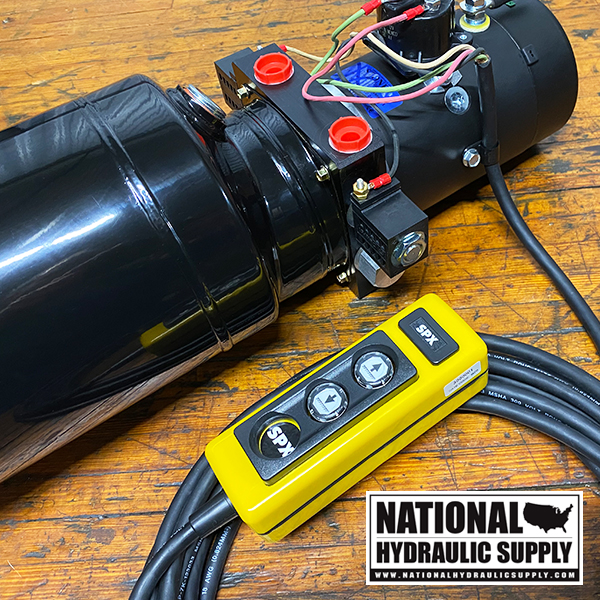

– Pendant Controller

The unit is shipped with dual high pressure adjustable relief valves which are set at roughly 2500 PSI for the “A” port and 1500 PSI for the “B” port (higher or lower relief pressures are available). This unit generates roughly 1.4 GPM at its current settings. Contact us for details.

Every hydraulic unit that we sell is assembled by hand in our shop. We take great pride in our workmanship, and place a high value on our ability to customize any unit to our customers specifications. This is a standard unit, but it can be modified with steel or plastic reservoirs up to 4 gallons, as well as other modifications per request. Contact us for details.
