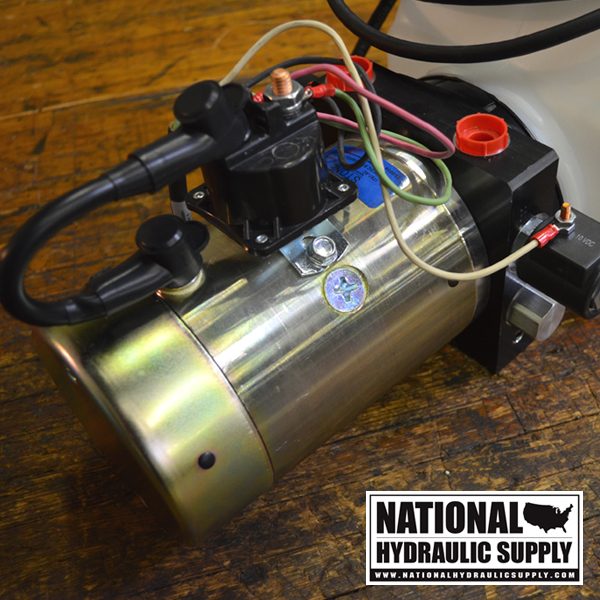

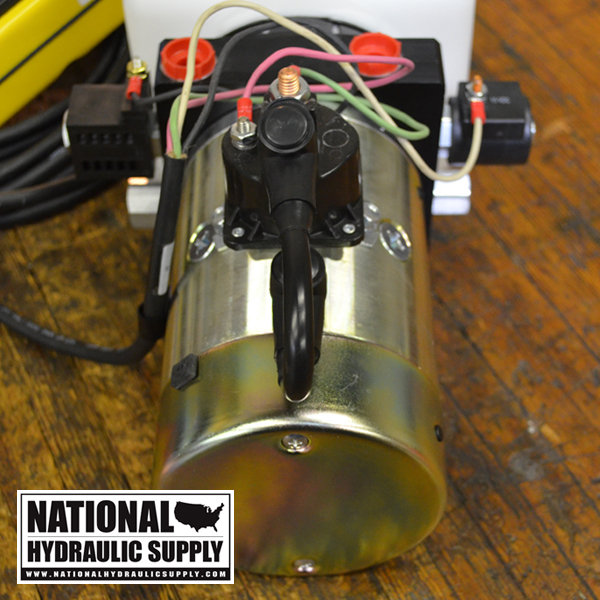

SPX Stone/Fenner Double-Acting Hydraulic Power Unit w/ 2-Gal. Plastic Reservoir

$ 699.99

Individually assembled by hand in Nashville, TN USA.

This SPX Stone/Fenner Double-Acting Hydraulic Power Unit is our top selling item. These are reliable and durable DC units for use with dump trailers, tow trucks, car haulers, snow plows, boat lifts, lift gates and a variety of other applications. Power up and power down. The unit is ready to go, right out-of-the-box.

– 12VDC Electric Motor (Standard Duty)
– Power Up / Power Down
– 2 Gallon Plastic Reservoir
– Gear Pump
– 12V Solenoid Start Switch (Prestolite)
– 2500 PSI (Adjustable Relief)

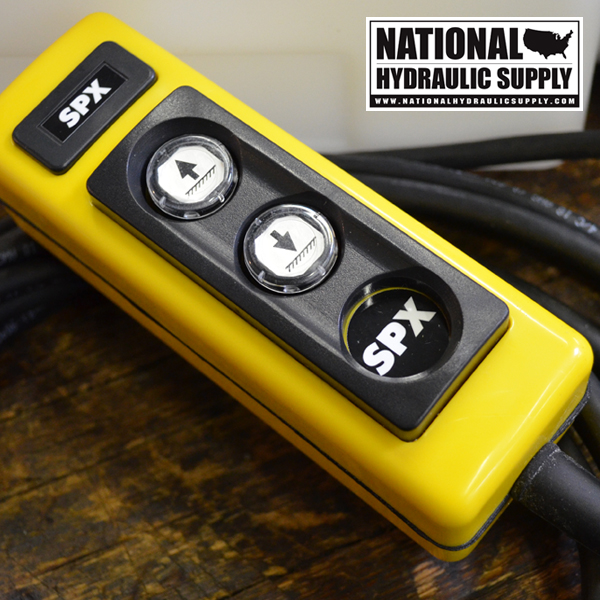

– Pendant Controller

The unit is shipped with a high pressure adjustable relief valve which is set at roughly 2500 PSI (higher or lower relief pressures are available). The low pressure side is also adjustable up to 500 PSI. This unit generates roughly 1.55 GPM at its current settings. Higher range springs are available for the low pressure relief and are recommended for boat lift applications. Contact us for details.

Every hydraulic unit that we sell is assembled by hand in our shop. We take great pride in our workmanship, and place a high value on our ability to customize any unit to our customers specifications. This is our standard unit, but it can be modified with steel or plastic reservoirs up to 4 gallons, as well as other modifications. Contact us for details.

SKU: DB-1646DK Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

Individually assembled by hand in Nashville, TN USA.

This SPX Stone/Fenner Double-Acting Hydraulic Power Unit is our top selling item. These are reliable and durable DC units for use with dump trailers, tow trucks, car haulers, snow plows, boat lifts, lift gates and a variety of other applications. Power up and power down. The unit is ready to go, right out-of-the-box.

– 12VDC Electric Motor (Standard Duty)
– Power Up / Power Down
– 2 Gallon Plastic Reservoir
– Gear Pump
– 12V Solenoid Start Switch (Prestolite)
– 2500 PSI (Adjustable Relief)
– Pendant Controller

The unit is shipped with a high pressure adjustable relief valve which is set at roughly 2500 PSI (higher or lower relief pressures are available). The low pressure side is also adjustable up to 500 PSI. This unit generates roughly 1.55 GPM at its current settings. Higher range springs are available for the low pressure relief and are recommended for boat lift applications. Contact us for details.

Every hydraulic unit that we sell is assembled by hand in our shop. We take great pride in our workmanship, and place a high value on our ability to customize any unit to our customers specifications. This is our standard unit, but it can be modified with steel or plastic reservoirs up to 4 gallons, as well as other modifications. Contact us for details.
